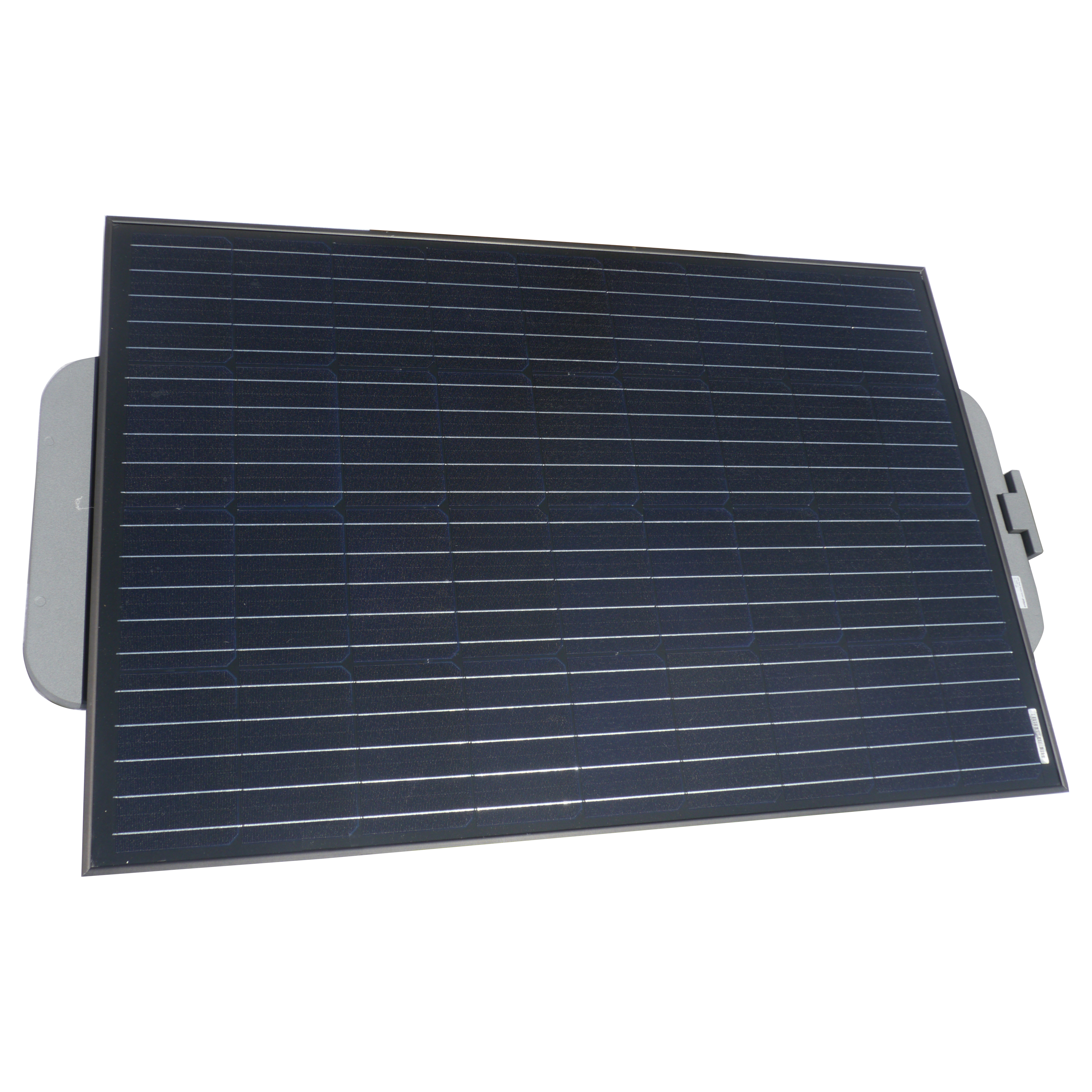

120W Solar Panel including Controller & 45Ahr Battery

SKU: SO-EK-363L-D1 Categories: , , ,




System Output Voltage: 12.8V DC (11.1V DC to 14.6V DC)
System Output Current: 1A
Idling Power Consumption: < 0.5W
Solar Panel Type: Monocrystalline silicon
Solar Panel Max Power: 120W
Battery Type: Lithium iron phosphate battery
Battery Rated Capacity (20ºC, 5hr): 576Wh (12.8V/45Ah)
Battery Max Charging Voltage: 14.6V DC
Battery Max Charging Current: 10A
Over-discharge Protection Voltage: 11.1V DC
Low Temperature Charge: ≤-10°C (14°F)
Low Temperature Discharge: ≤-20°C (-4°F)
Casing Material: Aluminum
IP Rating: IP66
Operating Altitude: < 3000m
Operating Temperature: Day (charging mode): 0°C ~ 60°C  (32°F ~ 140°F)
Night (discharging mode): -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity: Less than 95% RH
Dimensions: 1149.5mm × 367.5mm × 430.2mm
(45.26″ x 14.47″ x 16.94″)
Net Weight: 26.5kg (58.42lb)
Gross Weight: 34.5kg (76.06lb)
