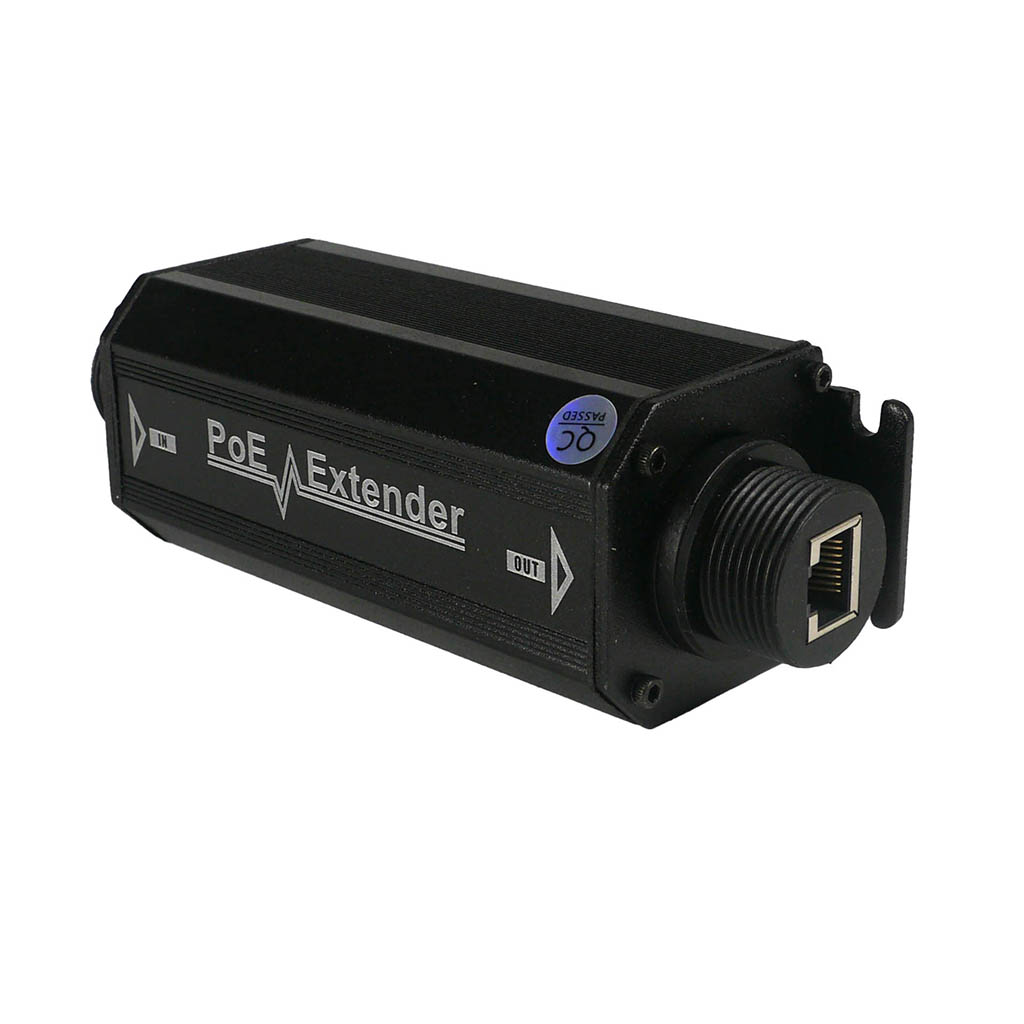

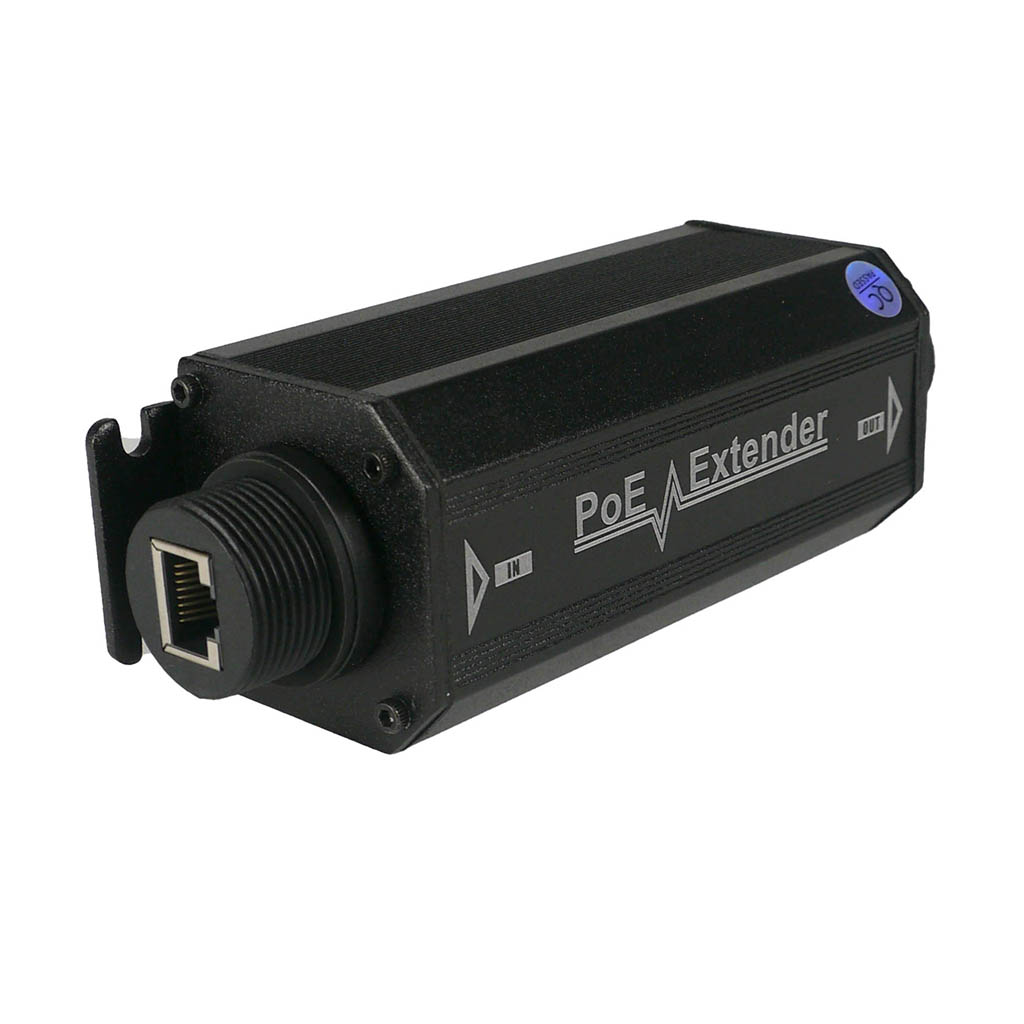

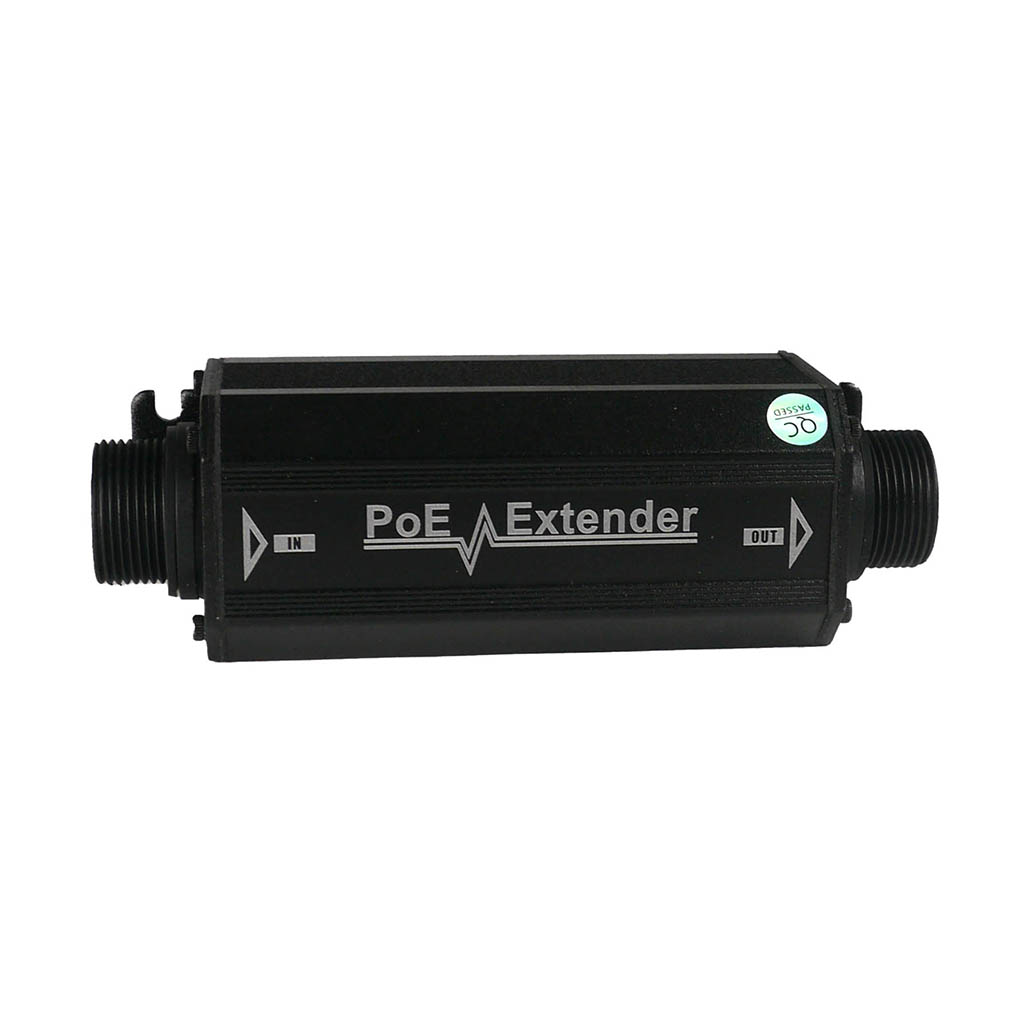

E-Series Outdoor Waterproof Gigabit PoE Extender 1(PoE IN) into 1(PoE OUT) 25W

SKU: P-EX60W-1 Categories: , , ,




No. of channel 1(PoE IN) into 1(PoE OUT)
Pass Through Data Rate 10/100/1000 Mbps half/full duplex
Power over Ethernet input Pin Assignment and Polarity:
Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+)
Power over Ethernet Output Pin Assignment and Polarity:
1/2 (+), 3/6 (-)
Output Power: up to 22W
Connector Shielded RJ-45, EIA 568A and 568B
Network cable Outdoor type Shielded cat 5 (or higher
Dimension 185mm x 45mm x 45mm
Mounting Wall of shelf
Environment Indoor or outdoor
Environmental Condition Operating Ambient Temperature:-25 to 55
Operating Humidity:
Maximum 90%, Non-condensing
Storage Temperature:-30 to 70
Storage Humidity:
Maximum 95%, Non-condensing
Regulatory Compliance IEEE 802.3af (PoE), IEEE 802.3at (PoE+)

Document Downloads
Product Specifications Detailed Feature List and Product Specifications
