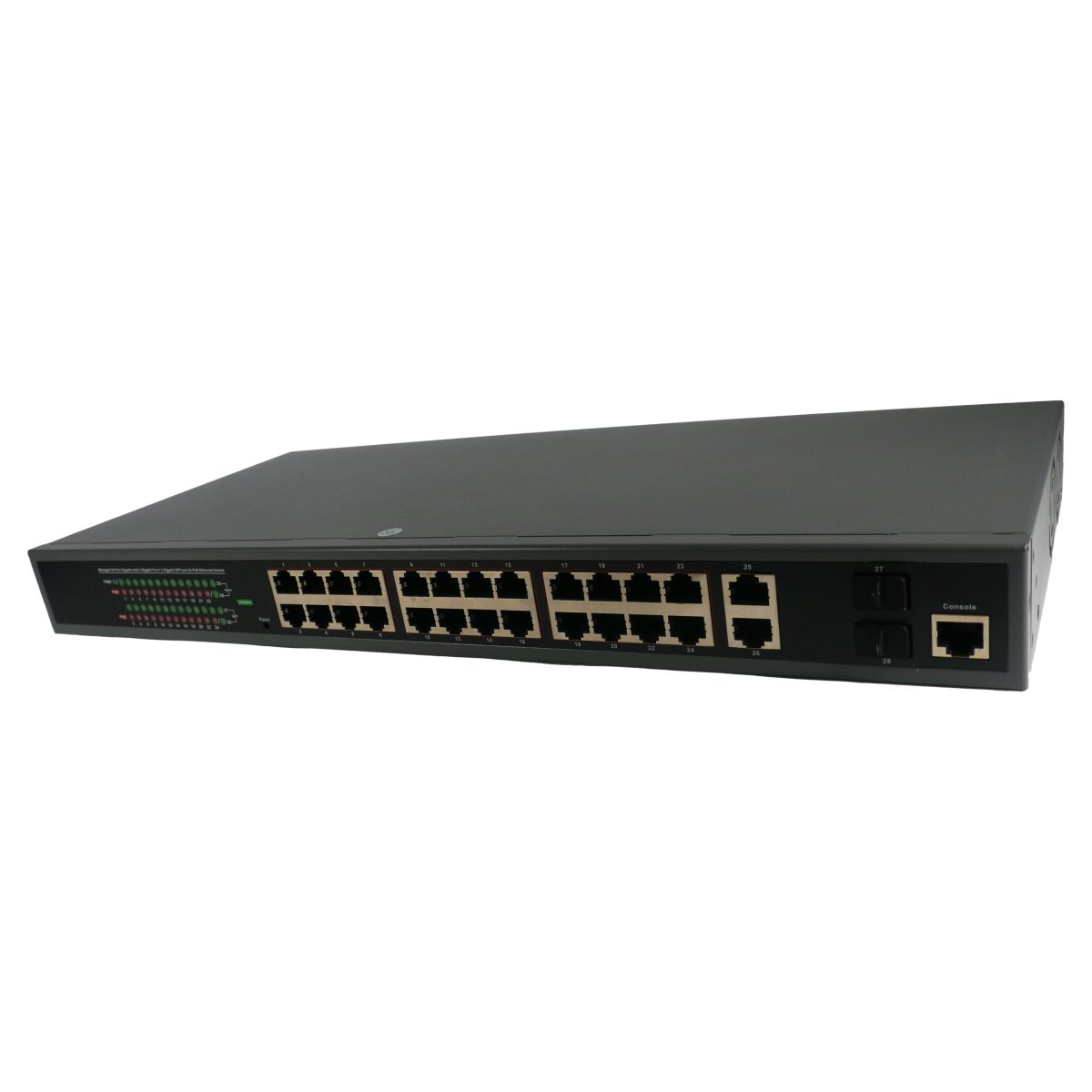

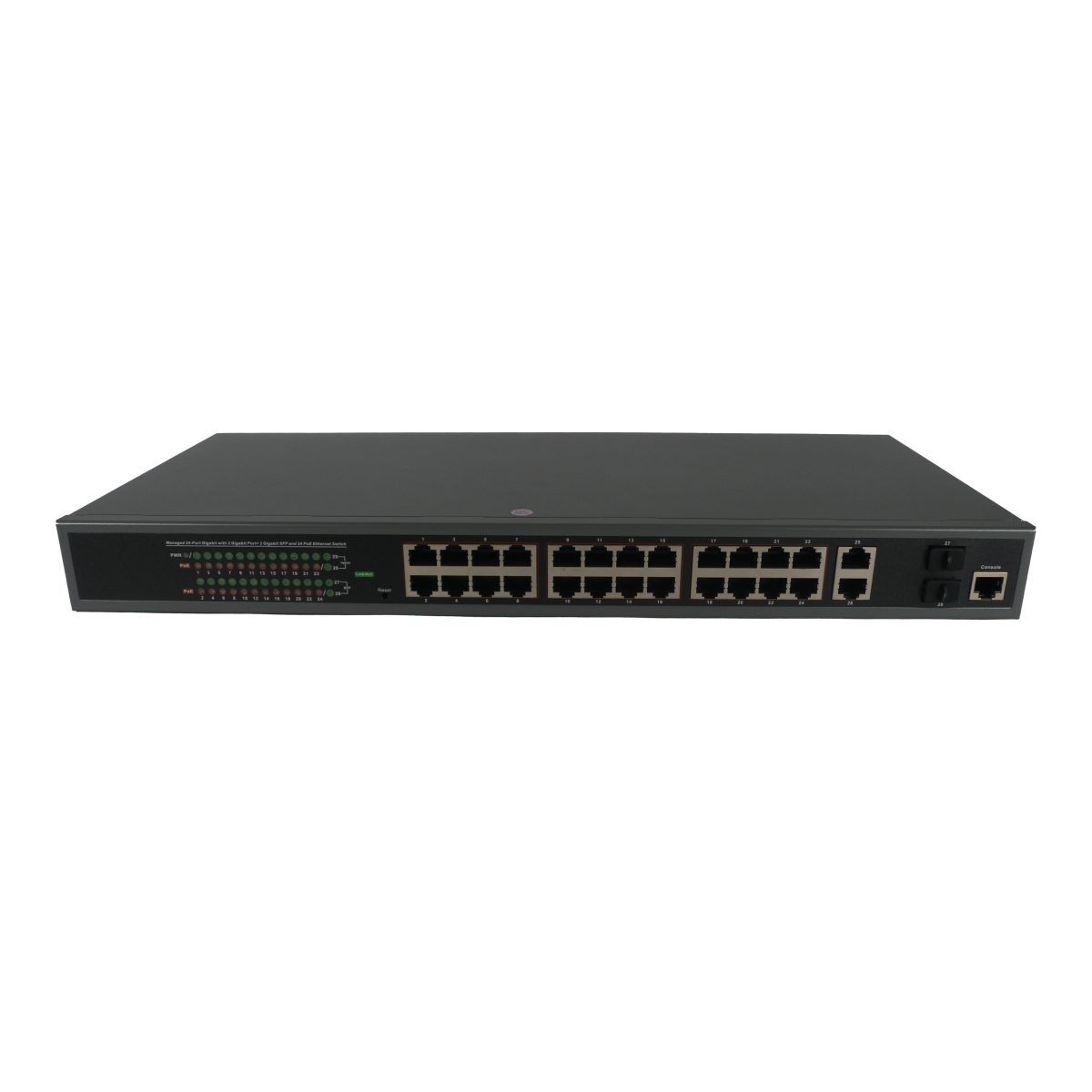

24 Port Managed PoE+ Network Switch

SKU: P-24TPMNF2G-H Categories: , , ,



Layer 2 Managed PoE Switch

With automatic detection and DHCP functions

Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab

24-Port 10/100/1000Mbps supports 52V DC output

2-Port 1Gbps RJ45 + 2-Port 1.25Gbps SFP + 1-Port Console

Complies with IEEE 802.3af/802.3at Power over Ethernet

Single port maximum 30W output, total power 370W

Auto detects powered device (PD)

Remote power feeding up to 100m

Supporting 8K absolute MAC addresses

High back-plane bandwidth 56 Gbps

Made of metal, rack-mount design

EMI standards complies with FCC, CE class A

Document Downloads
Product Specifications Detailed Feature List and Product Specifications
