Description
Specifications
Camera
| Features |
· 8MP, 1/2.7" CMOS image sensor, low illuminance, high image definition · Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps · Support Triple Stream · H.265 codec, high compression rate, ultra-low bit rate · Built-in IR LED, max IR distance: 30 m · ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments · Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes · Intelligent detection: Intrusion, tripwire · Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection · Supports max. 256 GB Micro SD card |
| Lens | 2.8mm Fixed Lens |
| MP | 8MP |
| Image Resolutions | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Sensor Size | 1/2.7 CMOS |
| IR Distance | 98 feet |
| IP Rating | IP67; IK10 |

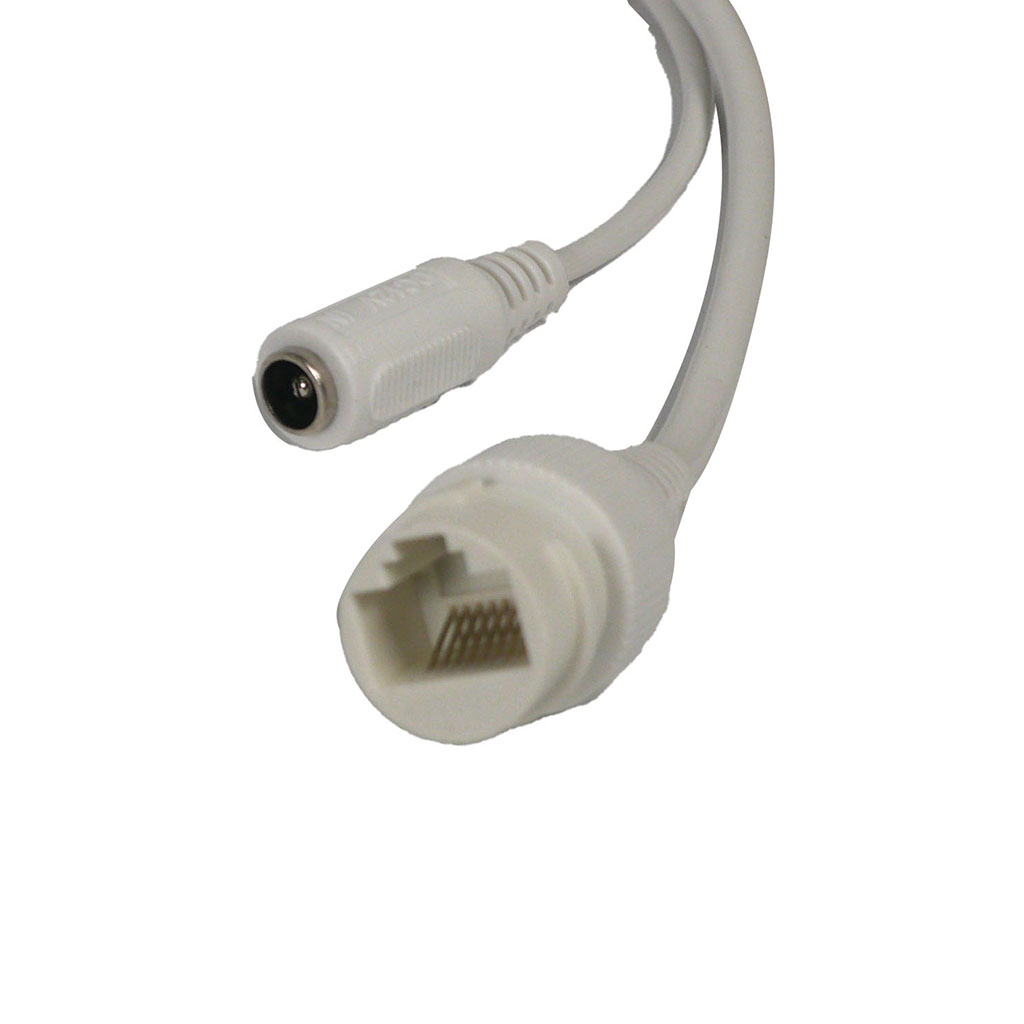

| Voltage | 12V DC/PoE (802.3af) |
| Temp Range | –40°F to +140°F |
| Dimensions | 3.19 by 4.33 inches |
| Weight | 1.08 lb |
| SD Card Compatible | Supports max. 256 GB Micro SD card |
Downloads
Document Downloads
 |
Product Specifications | Detailed Feature List and Product Specifications |
|
Product Manual | Original Product Manuals |
